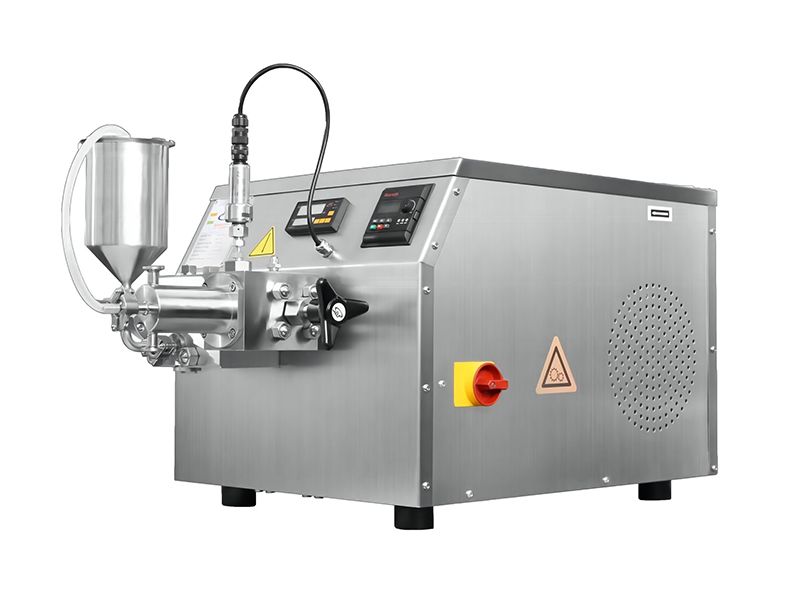

Pharmaceutical Homogenizer

Pharmaceutical Homogenizer
  • Pharmaceutical Homogenizer
  • Pharmaceutical Homogenizer
  • Pharmaceutical Homogenizer
  • Pharmaceutical Homogenizer

    • Pharmaceutical Homogenizer

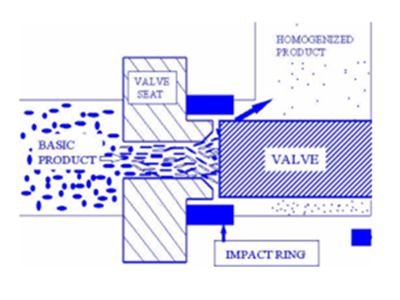

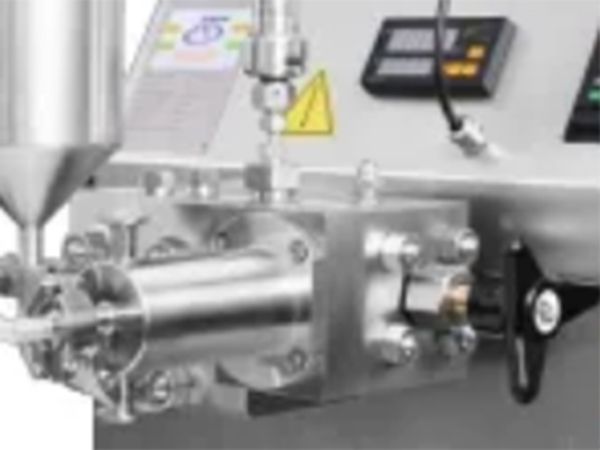

    The plunger pump sucks the material and applies pressure to it, causing it to flow into the valve block where the pressure can be adjusted. As the material passes through the limited width gap of the designated area, it is met with one of the valve parts at a high speed and generates a momentary drop in pressure.

    Request a Quote
    Features
    • Unique solution of two-stage homogenizing valve, crafted from ceramic or alloy.
    • A digital pressure gauge which is clearly viewable and an electronic safeguard system have been combined, offering simple observation and protection.
    • Compact design, suitable for lab bench.
    • Circulate cooling device with material
    • Modular design, simple to operate, and requires little maintenance.
    Technical Parameters
    Max. nominal pressure 2000 bar
    Max. operation pressure 1800 bar
    Feed size < 500 μm
    Dimensions 440*410*800MM（W*H*L）
    Product viscosity < 2000 CP
    Capacity 25 mL-13 L/H
    Feed temperature < 90 ℃
    Weight 110 kg
    • Pharmaceutical Homogenizer
    • Pharmaceutical Homogenizer
    Examples
    • Pharmaceutical HomogenizerBefore
    • Pharmaceutical HomogenizerAfter
    • Pharmaceutical HomogenizerBefore
    • Pharmaceutical HomogenizerAfter
