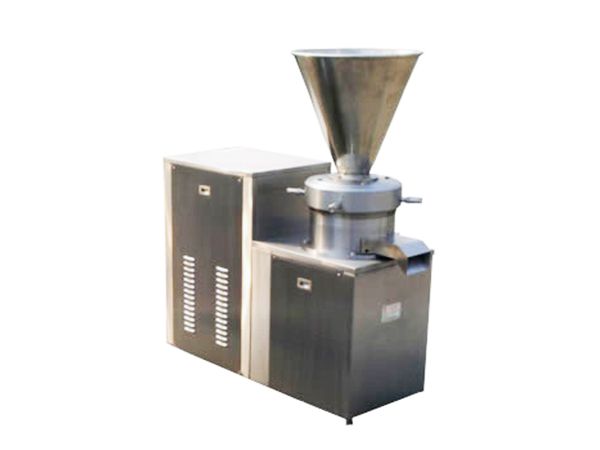

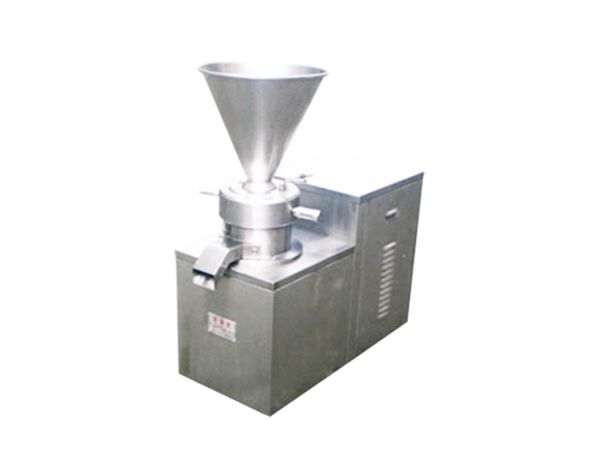

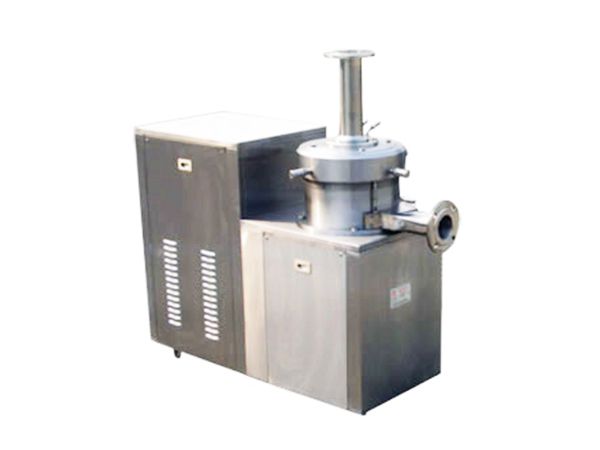

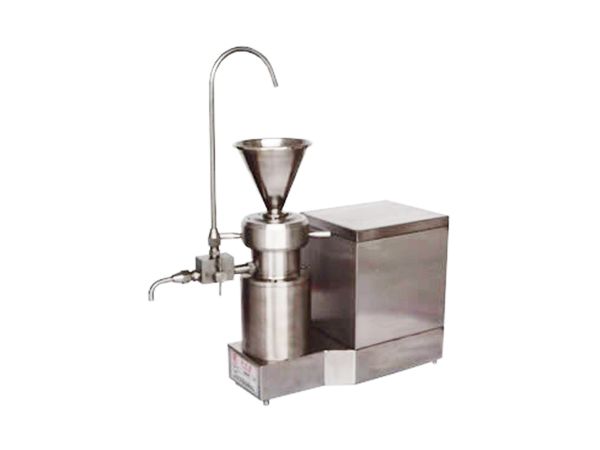

Colloid Mill

Colloid Mill
Donghua colloid mill is a wet superfine powder grinder. The grain pulverized by this mill is fine and homogenous. The components touching the material are made of wear-resistant and corrosion-resistant materials. Our colloid mill has many features including occupying a small floor area, producing low noise, having complete functions and high efficiency. It is therefore, widely used in the food, chemistry, textile, architecture, pharmaceuticals, papermaking and other industries.

Technical Specifications for Colloid Mill

Model DJM 110L.A DJM 130L.A DJM 160L.A DJM 210L.A DJM 260L.A
Particle size (μm) 5-40 5-40 5-40 5-40 5-40
Flow t/h 0.5-2 1-4 2-6 4-10 6-15
Power KW 7.5 7.5 11 5.5 7.5
Noise db ≤85 ≤85 ≤85 ≤85 ≤85
Rotor speed r/min 3000 3000 3000 3000 3000
Weight kg 250 290 330 200 220
Structural feature With cooling device With cooling device With cooling device With cooling device With cooling device
Outline dimensions 800×350×900 800×350×1000 900×900×1000 900×650×350 900×650×350

More about Colloid Mill
Applications
1. Food industry: dairy products, chocolate, soybean milk, jam, peanut butter, cream drinks etc.
2. Chemical industry: paint, lubricant, spices, dyes, emulsified asphalt, emulsified rubber, catalysts, paints and coatings etc.
3. Pharmaceutical industry: cod liver oil, pollen and so on.
4. Daily chemical industry: shoe polish, toothpaste, cosmetics, balm, soap, detergents and so on.
5. Other industries: construction industry, paper industry, plastics industry, among others.

Working Principle
A colloid mill reduces the particle size of a solid by applying shearing, grinding and high speed mixing. Grinding is accomplished by the relative motion of two tooth profile inclines (one rotating at a high speed, the other being still). Materials between the tooth profile inclines are effectively dispersed, pulverized and homogenized under high levels of shearing force, friction, high-frequency vibration and other forces.

Structure
Depending on different structural features, a colloid mill can categorized as vertical colloid mill and horizontal colloid mill. The mill mainly consists of grinding head parts, drive components, electric motor, stator, rotor, and cooling device etc. The parts that are exposed to the materials are made of high-grade stainless steel that is corrosion-resistant and innocuous. Dynamic disc and stable disc are key parts of this machine. There are different physical properties; discs differ in tooth form, but all made of stainless steel. Motor is specially designed according to the requirement of the colloid mill, and flange cover is fitted to prevent leakage.

Founded in 1984, Donghua is a professional colloid mill manufacturer and supplier in China. We have 25 years of experience in the production of colloid mills. This has improved our skills in the production of competitive products. Our colloid mill is ISO9001 and CE certified, and sought after by global customers. Currently, our products are exported to over 80 including the USA, Canada, Brazil, Venezuela, Germany, Spain, Japan, South Korea, India, Iran, Saudi Arabia, Russia, Indonesia, Vietnam, Egypt, just to name a few. Donghua is located in Shanghai, where there are abundant raw materials and convenient transportation facilities. This enables us to provide our customers with low priced products.
Whenever you have a need for colloid mills, please feel free to contact us!
