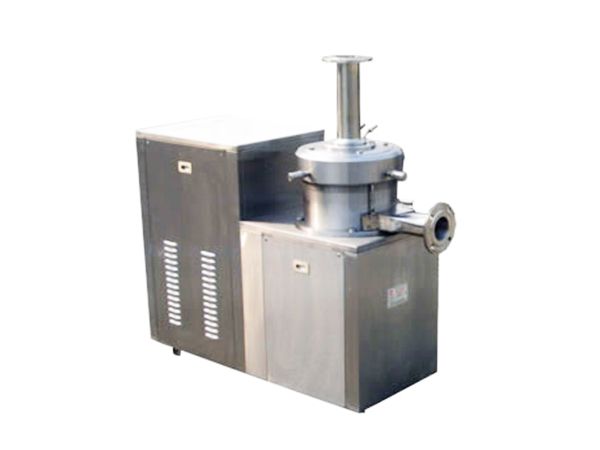

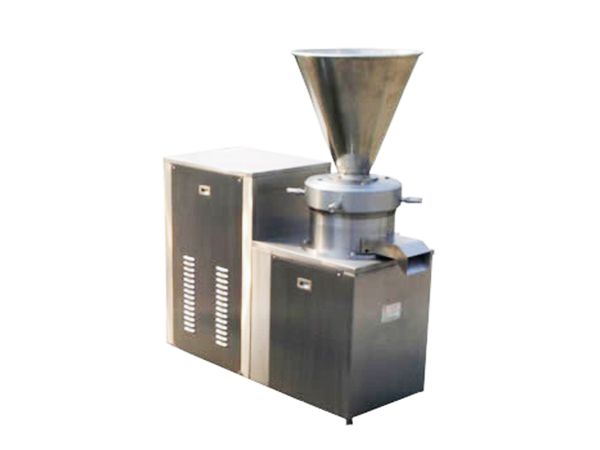

High Speed Colloid Mill

High Speed Colloid Mill
Donghua high speed colloid mill is driven by an electric motor. The rotor has 3-4 grade shear grooves and stator to conduct high speed rotation. The materials pass through a gap between the rotor and stator where they are subjected to large shear forces, friction and high-frequency vibration, for pulverization into fine grain. Limited by its speed, common colloid mills are not suitable for dyes and paints. With a rotation speed of over 3000 r/min and a relative line speed of 30-40m/s, Donghua high speed colloid mill provides an outstanding shear effect and fineness degree. After passing through our high-speed colloid mill 1-3 times, paints and dyes can be ground to particles with diameter less than 30μm.

Technical Specifications for High Speed Colloid Mill

Model DJM 130L.G DJM 160L.G DJM 210L.G DJM 260L.G
Particle size (μm) 3-30 3-30 3-30 3-30
Flow t/h 1-4 2-6 4-10 6-15
Power kw 11 15 22 37
Noise db ≤86 ≤86 ≤90 ≤92
Rotor speed r/min 3600 3500 3000 2800
Weight kg 320 380 525 760
Structural feature With cooling device With cooling device With cooling device With cooling device
Outline dimensions 80×35×100 90×40×110 96×45×115 105×50×125

With 25 years of experience, Donghua can provide a wide range of products, including high speed colloid mills, colloid mills and homogenizers. Our products have received ISO9001 and CE certification, and are very popular in the global market. They are sold to many countries such as the USA, Canada, Brazil, Venezuela, Germany, Spain, Japan, South Korea, India, Iran, Saudi Arabia, Russia, Indonesia, Vietnam, Egypt, etc. As a renowned high speed colloid mill manufacturer and supplier in China, we not only provide high quality products, but also offer complete customer services. We also offer spare parts for our customers, and all our products come with a warranty of one year.
Please contact us today for more product information!
